SPECIFICATIONS

Brand Name: Heltec energy
Certification: CE
High-concerned chemical: None
Origin: Mainland China
Pulse Power: 10.6/12/19.8KW(Peak)
Use: spot welding


If you have any questions, please contact customer service first,and we will help you solve them as soon as possible !!!

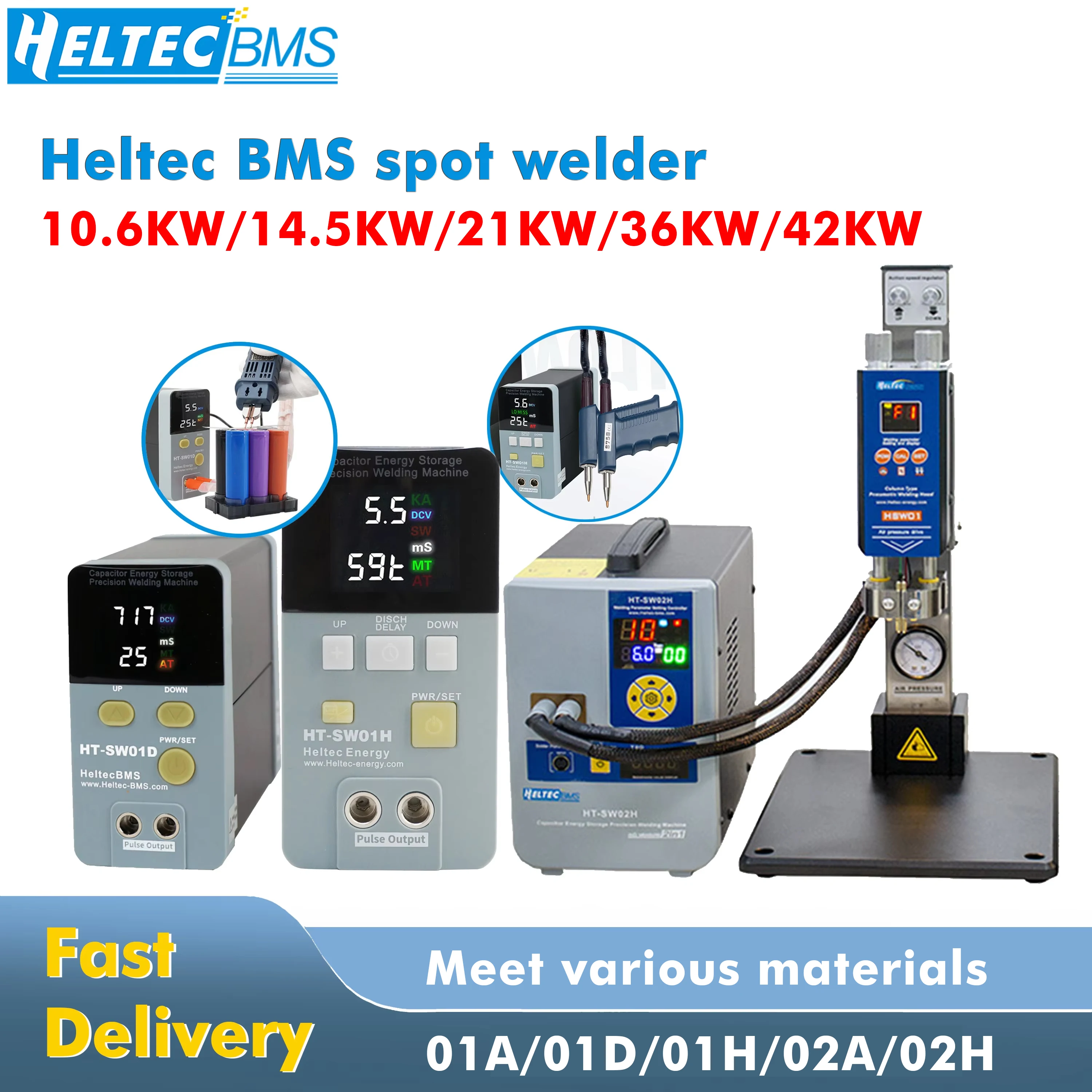

Selection Table:

SKU
HT-SW01A
HT-SW01D
HT-SW01H
HT-SW02A
HT-SW02H
Principle
DC energy storage
DC energy storage
DC energy storage
DC energy storage
DC energy storage
Output Power
10.6KW
14.5KW
21KW
36KW
42KW
Output Current
2000A (Max.)
2500A (Max.)
3500A (Max.)
6000A (Max.)
7000A (Max.)
Standard Welding Tools
1.70A(16mm²) split welding pen;
2.Metal butt welding seat.
1.73B(16mm²) integrated welding pen;
2.73SA Press down spot welding head.
1.75 (25mm²) split welding pen;
2.73SA Press down spot welding head.
75A（35mm²）split welding pen;
75A（50mm²）split welding pen;
Pure nickel welding
18650 thickness
0.1~0.15mm
0.1~0.3mm
0.1~0.4mm
0.1~0.5mm
+73B 35mm²
0.1~0.5mm
（+73B 25mm² - one meter long）
Nickel plating welding
18650 thickness
0.1~0.2mm
0.15~0.4mm
0.15~0.5mm
0.1~0.6mm
+73B 35mm²
0.1~0.6mm
（+73B 25mm² - one meter long）
Pure nickel welding
LFPaluminum electrode
/
/
/
0.1~0.2mm
0.1~0.3mm
Nickel aluminum composite sheet welding
LFPaluminum electrode
/
/
0.1~0.15mm
0.1~0.2mm
0.15-0.4mm
Copper weldingLFPCopper electrode(with flux)
/
/
/
0.1~0.3mm
0.15~0.4mm
Power Supply
AC 110~220V
(general)
AC 110~220V
(general)
AC 110~220V
(general)
AC 110 or 220V
（Optional）
AC 110 or 220V
（Optional）
Output Voltage
DC 5.3V(Max.)
