SPECIFICATIONS

Battery Included: No
Brand Name: Heltecbms
Certification: CE
DIY Supplies: Electrical
High-concerned chemical: None
Model Number: HT-BCT50A
Origin: Mainland China
Power Source: None
Type: Vehicle Battery Tester

Product Overview

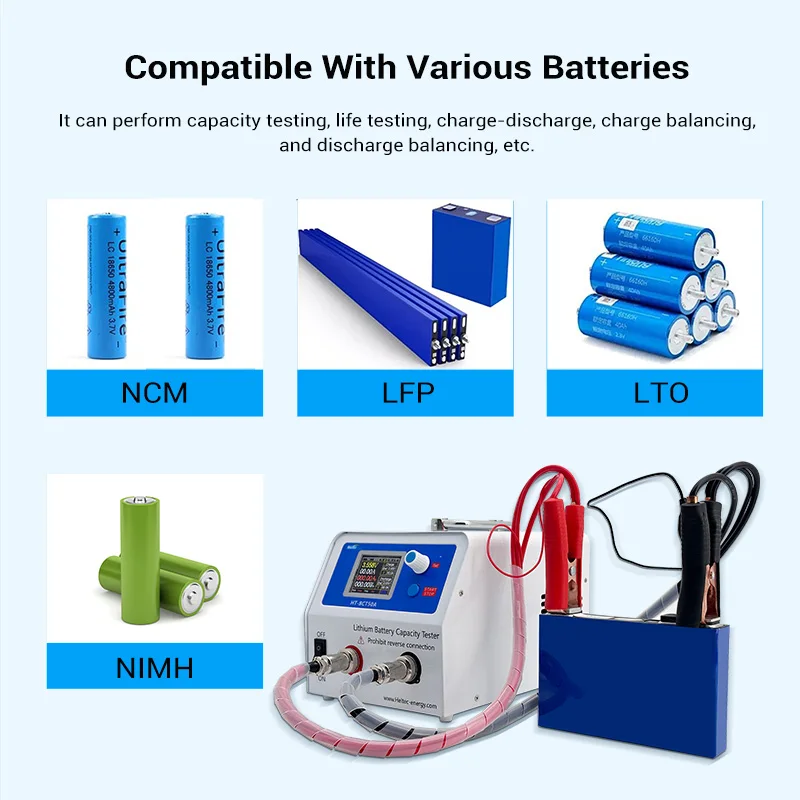

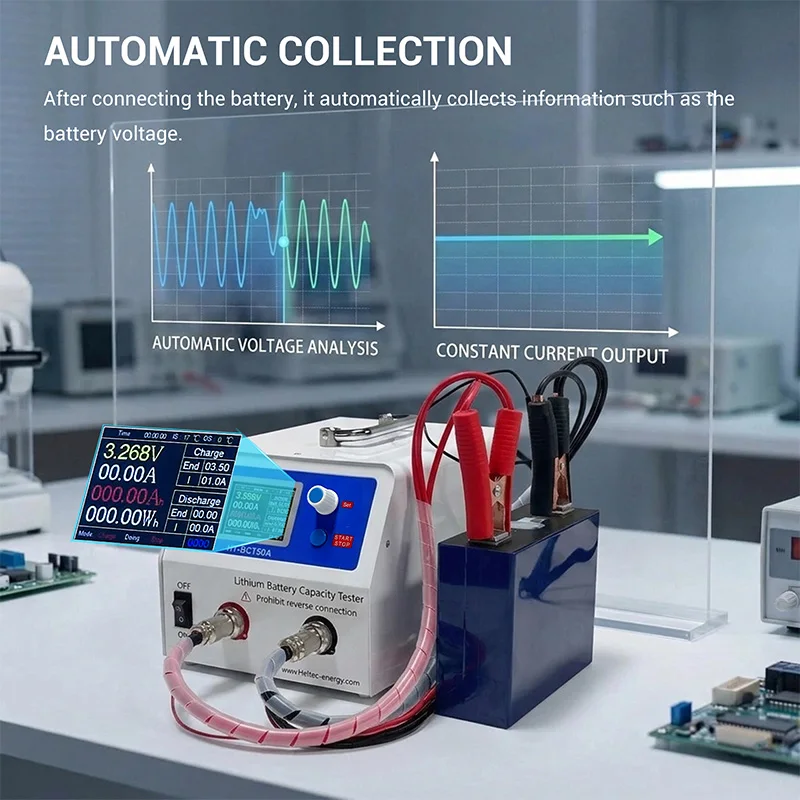

The HT-BCT50A Cell Charge-Discharge Capacity Tester is compatible with various battery cells under 5V, including Li-ion (NMC), LiFePO4, NiMH, and lead-acid batteries. It supports functions such as capacity testing (charge/discharge), recharging, discharging, voltage balancing, and aging tests. This compact and lightweight device offers high precision and comes with CE certification, making it ideal for both laboratory and mass production testing.
Feature
1. Compatible with Multiple Battery Types
Supports NMC Li-ion, LiFePO4, NiMH, and lead-acid cells under 5V, suitable for various testing needs.
2.All-in-One Testing Functions
Offers charge/discharge capacity test, recharging, discharging, voltage balancing, and aging test — all in one device.
3.High-Precision Measurement
Equipped with high-accuracy sampling circuitry, ensuring reliable and consistent test results for both R&D and production.
4.Compact and Lightweight Design
Small footprint and portable design make it easy to use in labs or production environments.
5.CE Certified for Safety
CE-certified for safety and quality assurance, providing peace of mind during operation.

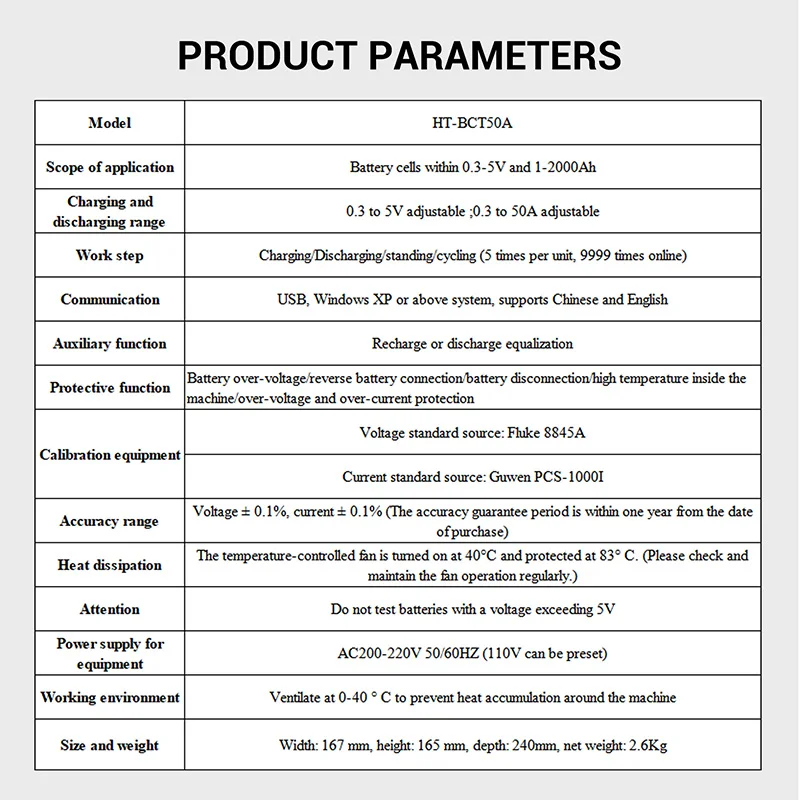

Parameters
Model: HT-BCT50A5V

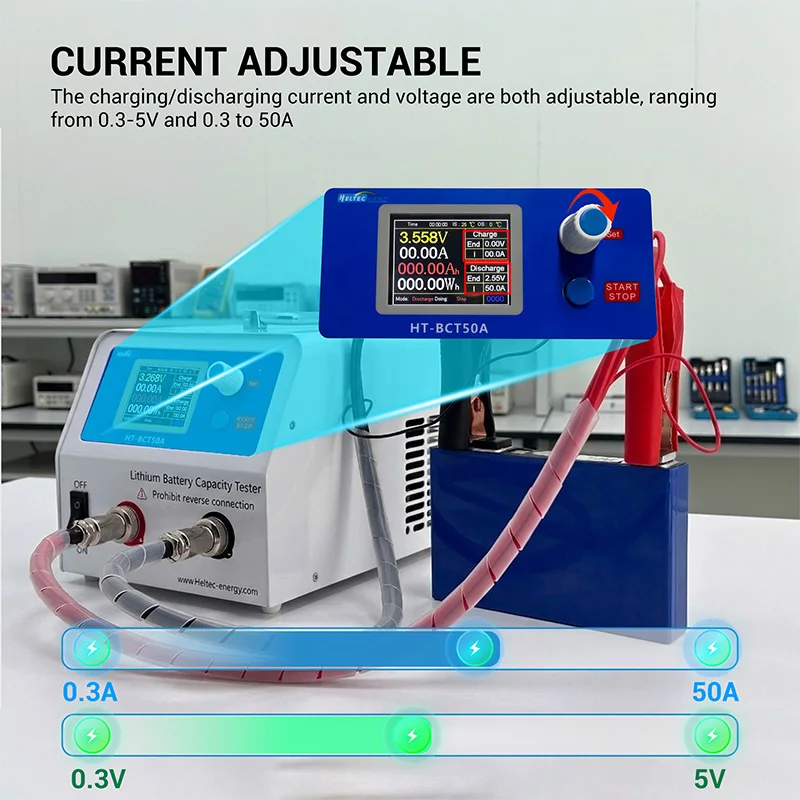

Charging Range: 0.3–5V / 0.3–50A Adjustable, CC–CV Mode
Discharge Range: 0.3–5V / 0.3–50A Adjustable, CC Mode
Work Steps: Charge / Discharge / Rest Time / Cycle (up to 9999 cycles)

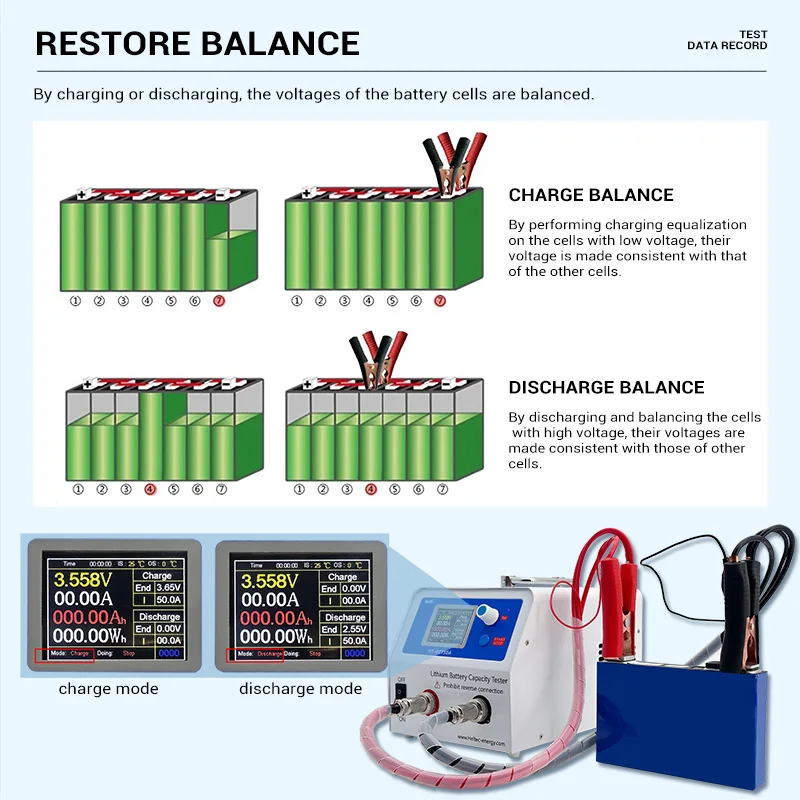

Auxiliary Functions: Voltage Balancing (CV Discharge)

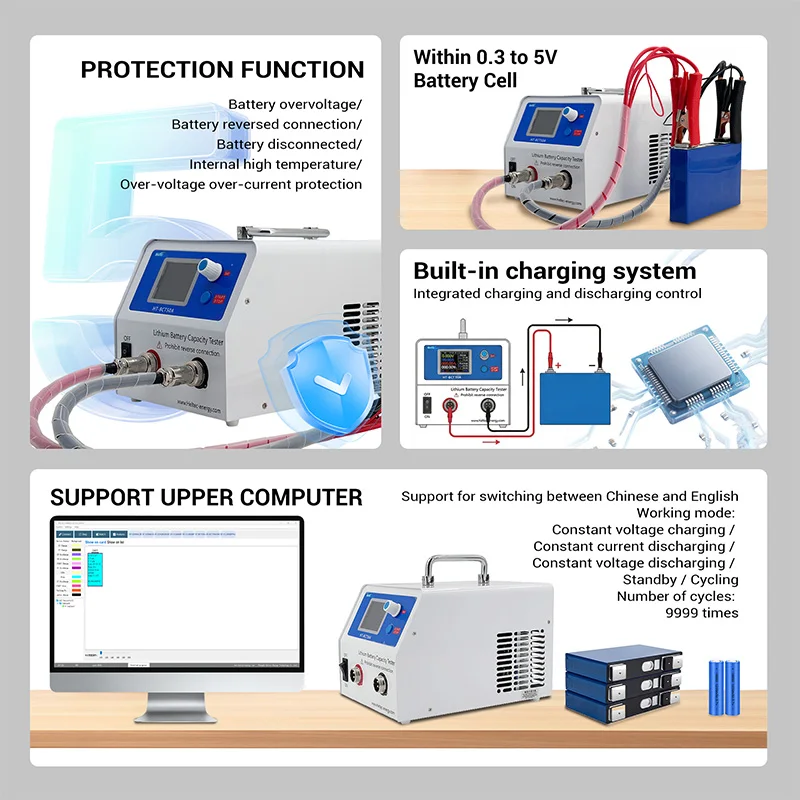

Protective Functions: Battery Overvoltage / Reverse Connection / Battery Disconnection / Fan Not Running
Calibration Equipment:Voltage: Fluke 8845A；Current: GW Instek PCS-1000I
Accuracy:Voltage: ±0.1%；Current: ±0.1%(Accuracy guaranteed within one year from the purchase date)

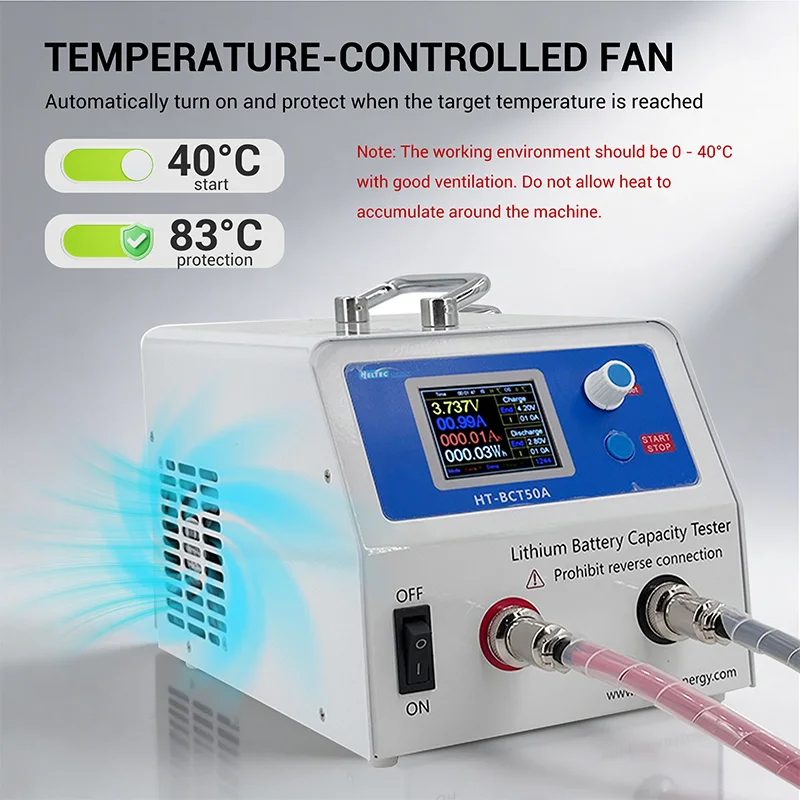

Cooling:Fans activate at 40°C；Overheat protection at 83°C(Please inspect and maintain fans regularly)
Operating Environment:0–40°C, requires good air circulation，Avoid heat accumulation around the machine

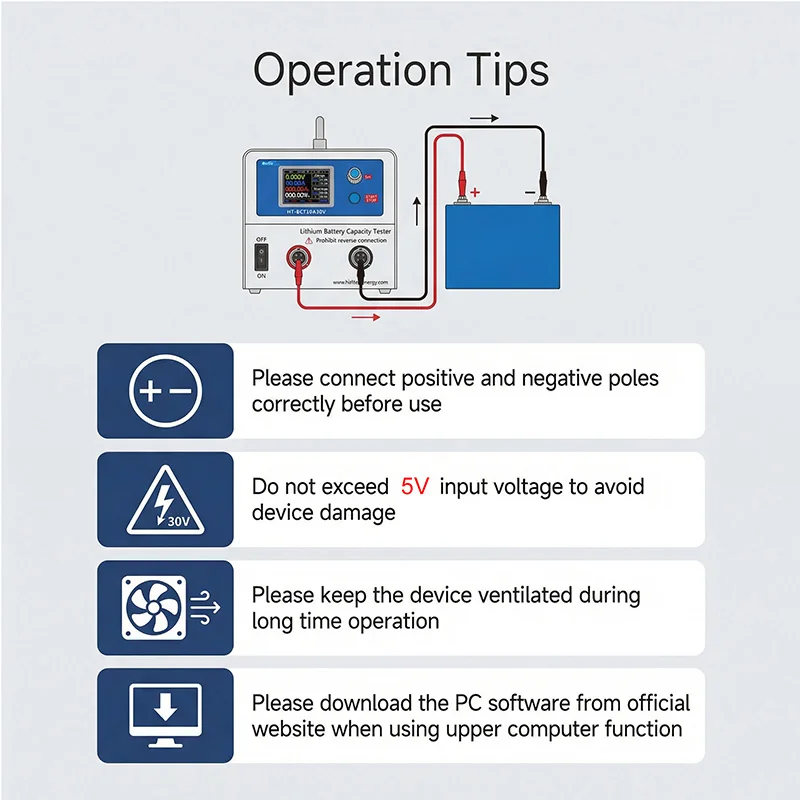

Warning:Do not test batteries above 5V
Power Supply:AC 200–240V, 50/60Hz(For 110V, please inform us in advance)
Product Dimensions: 167 × 165 × 240 mm
Weight: 2.6 kg

HT-BCT10A30V
Charging range:1-30V/0.5-10A Adj
Discharge range:1-30V/0.5-10A Adj
Work step:Charge/Discharge/Cycle

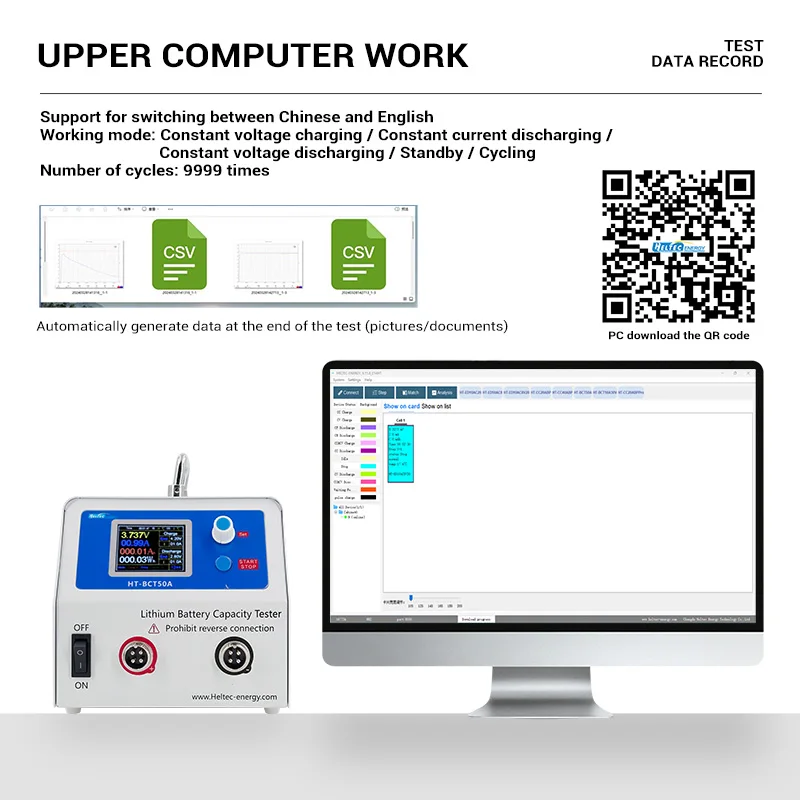

Communication:USB, WIN XP or above systems, Chinese or English
Protective function:Battery overvoltage/Battery reverse connection/ Battery disconnection/Fan not running
Calibration equipment: V: Fluke 8845A , A: Gwinstek PCS-1000I
Accuracy: V±0.1%,A±0.1%(The validity period of accuracy, within
one year from the date of purchase)
Cooling: Cooling fans open at 40°C, protected at 83°C (please check
and maintain the fans regularly)
Working environment: 0-40°C, air circulation, do not allow he
