SPECIFICATIONS

AC Current: 6mA/600mA/20A
AC Voltage: 6V/60V/600V/750V
AC/DC 600A Clamp: YES
Bar Graph Display: YES
Battery Included: No
Battery Type: 9V(6F22)*1
Brand Name: HoldPeak
Certification: NONE
DC Current: 60uA/600uA/6mA/60mA/600mA/20A
DC Voltage: 600mV/6V/60V/600V/1000V
DIY Supplies: Electrical
Date Hold/Auto Back Light: YES
Dimensions: 195*88*40mm
Diode Test/Continuity Buzzer: YES
Display: 6000
Display Type: Digital Display
Duty Cycle: 0.1%-99.9%
High-concerned chemical: None
Measuring Capacitance Range: 9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF/9.999mF/99.99mF
Measuring Frequnency Range: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.9999MHz
Measuring Inductance Range: NO
Measuring Resistance Range: 600/6k/60k/600k/6M/60M
Model Number: HP-770M
NCV: YES

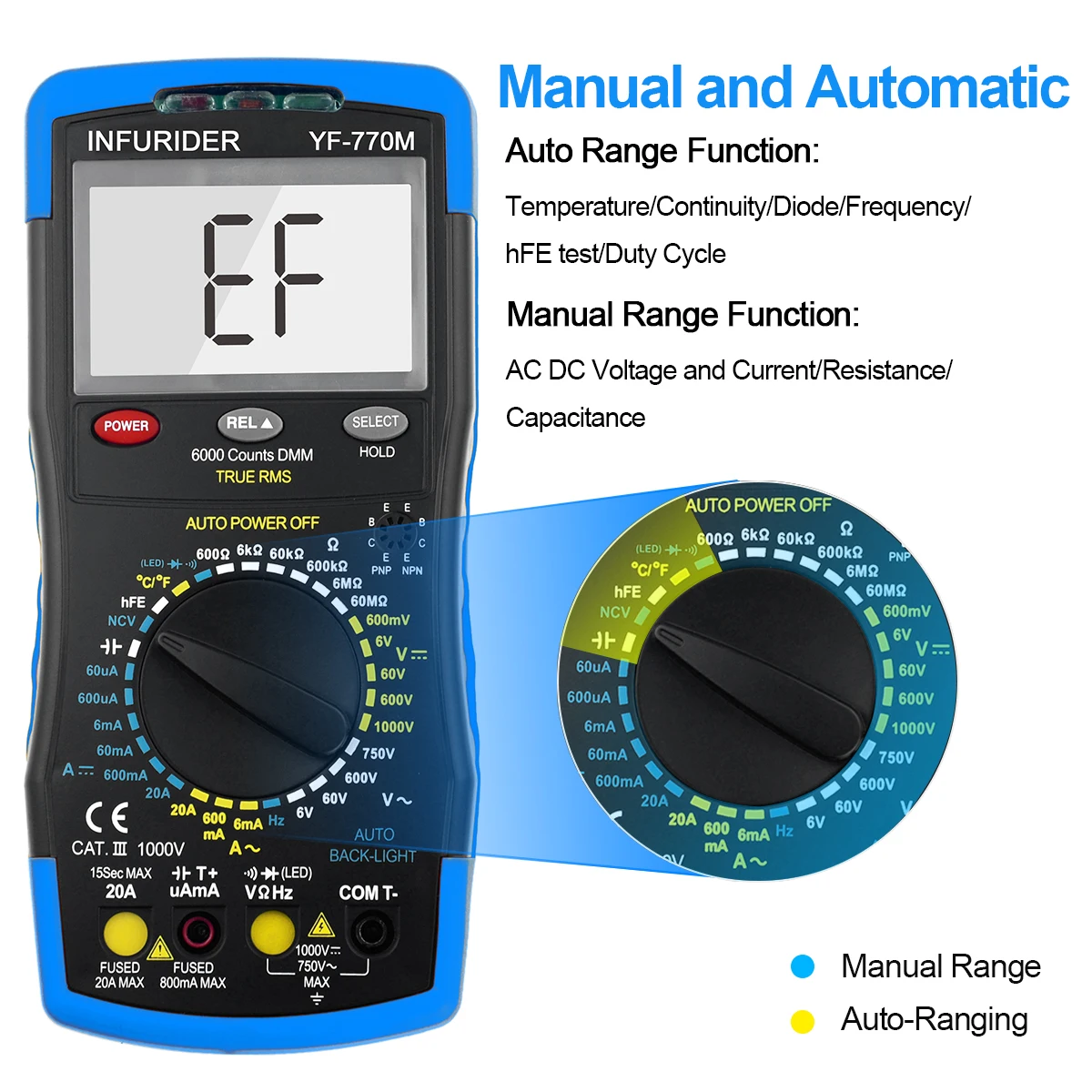

Operating Mode: Auto Range
Operating Temperature: -20 - 10000 ℃
Origin: Mainland China
Weight: 350g

HoldPeak Digital Multimeter HP-770M Auto Range RMS Detector AC/DC Ammeter Voltmeter Ohm NCV HFE Transistor Tester multimetr

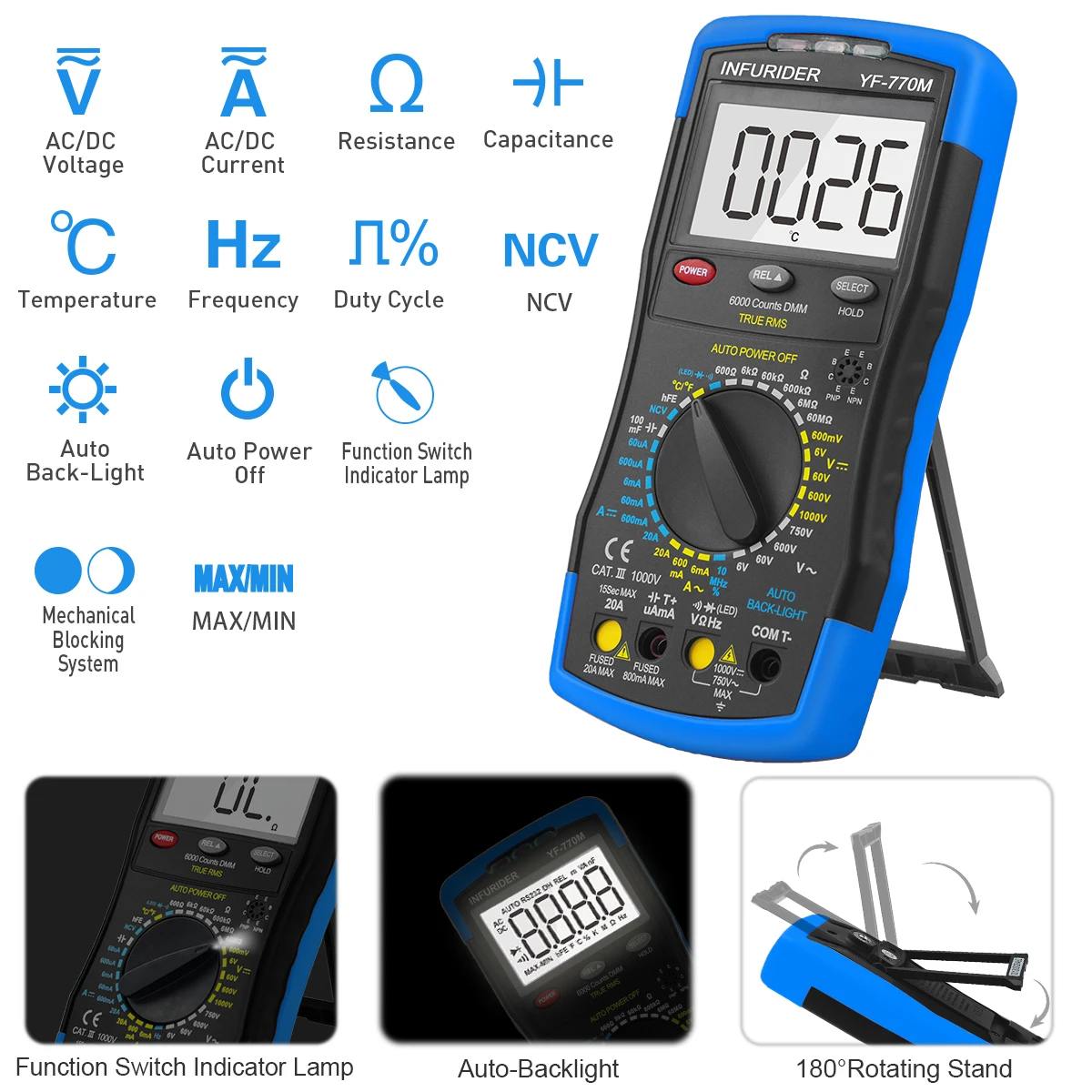

HP-770M Digital Multimeter uses a high-resolution LCD display that is clearly readable and has an intelligent backlight function that makes it easy to use in a dark environment.

HP-770M can be used not only to measure AC / DC voltage / current, diode, resistance, capacitance, frequency, but also to measure duty cycle, temperature, hFE test, true rms, relative value and maximum and minimum, non-contact voltage (NCV) test.

HP-770M has a unique mechanical protection, to prevent the user inserts the wrong jack. In multimeter products, multi-range multi-function HP-770M Digital multimeter is a good choice.

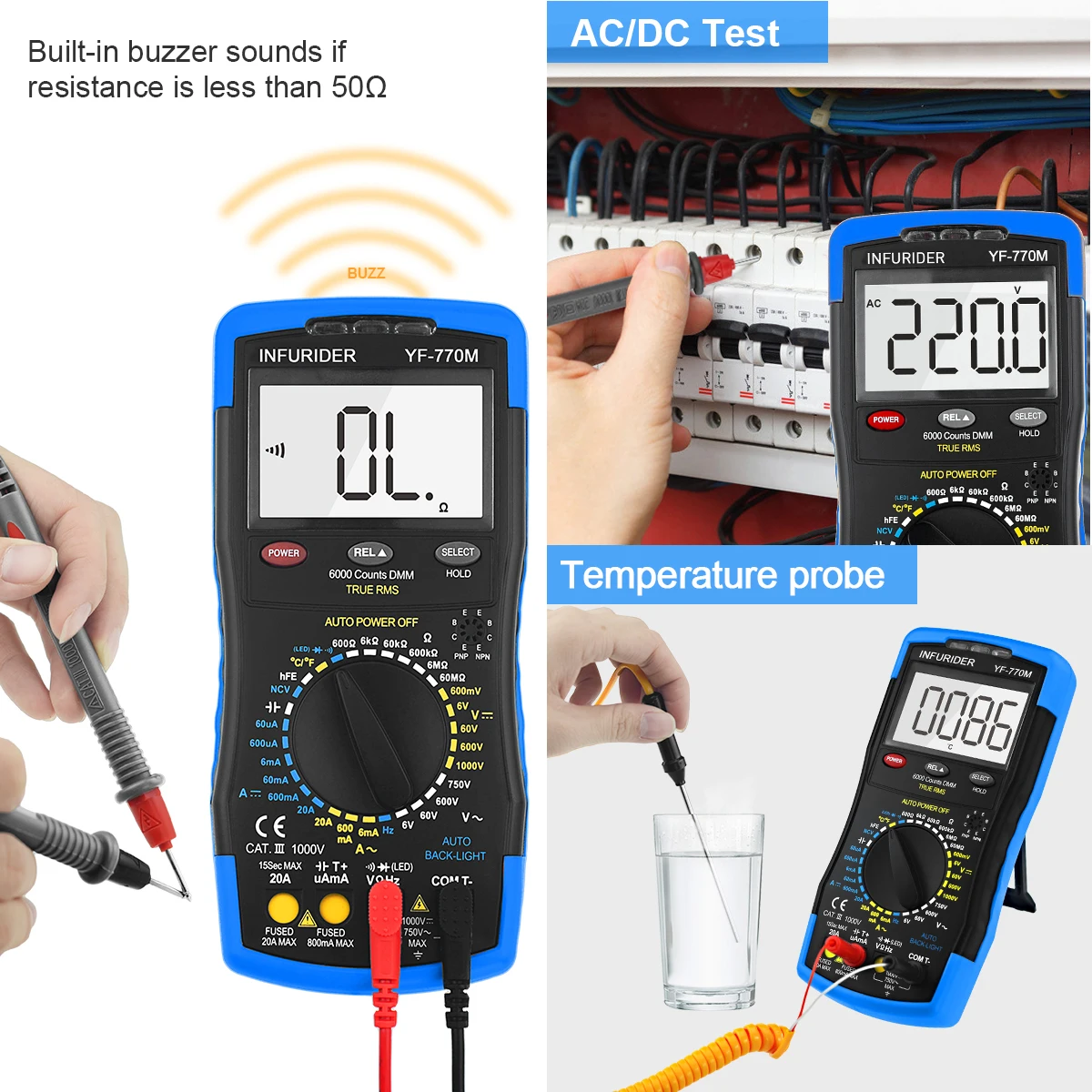

Test Diode/HFE/Continuity Buzzer
Function Switch Indicator Lamp
Celsius degree Fahrenheit conversion/NCV Test
DC/AC Voltage Test
DC/AC Current Test
Date Hold
Auto Back Light
Auto Power Off
AC/DC 600A Clamp
Bar Graph Display

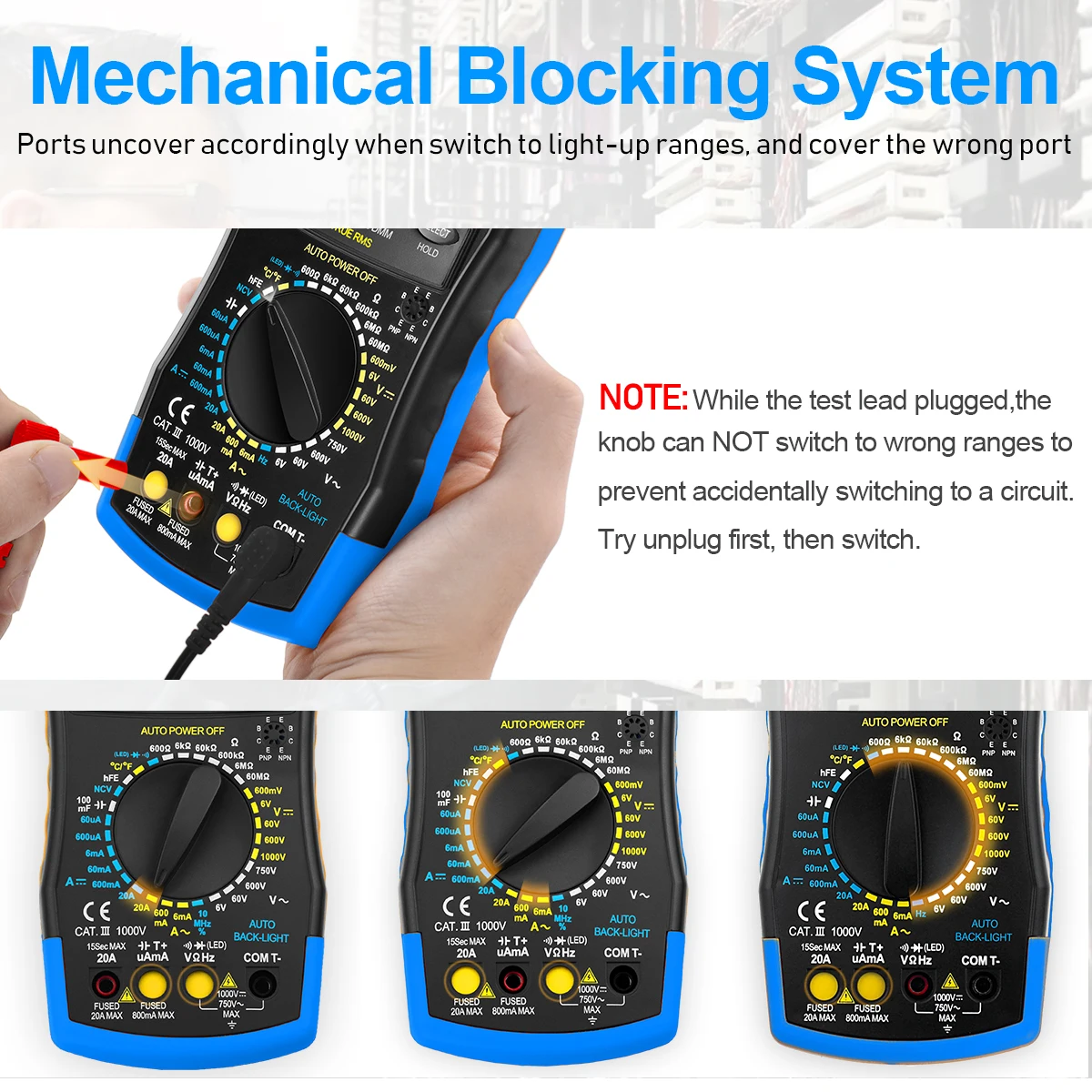

Mechanical Blocking System
Ture RMS/Relative Value/MAX/MIN Test
Test Diode/HFE/Continuity Buzzer
Function Switch Indicator Lamp
Celsius degree Fahrenheit conversion/NCV Test
DC/AC Voltage Test
DC/AC Current Test
Date Hold
Auto Back Light
Auto Power Off
AC/DC 600A Clamp
Bar Graph Display
Mechanical Blocking System
Ture RMS/Relative Value/MAX/MIN Test
Resistance/ Capacitance/ Temperature/Frequency Test
Packing list:
HoldPeak HP-770M Digital Multimeter x1
English Manual x 1
Test Leads x1
Temperature Test Probe x 1
Carrying Case x 1
