SPECIFICATIONS

Battery Included: No
Brand Name: INKBIRD
Certification: CE
Display Size: 1.9 Inches & Under
Display Type: DIGITAL
Electronic: No
High-concerned chemical: None
Is Smart Device: No
Max Measuring Temperature: 49°C & Under
Model Number: ITC-306T
Origin: Mainland China
Style: Standing Station
Theory: Temperature Controller
Use: Household


INKBIRD 220V ITC-306T Heating Cooling Pre-wired Temperature Controller With Time Function For Breeding and Planting Pet Breeding

Main features

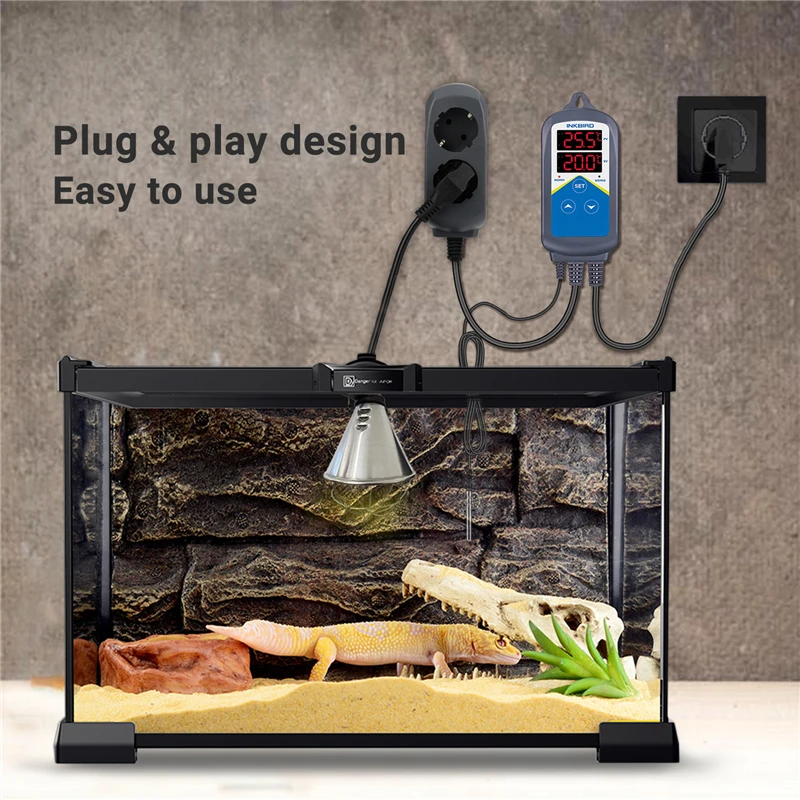

Ÿ Plug and play design, easy to use;
Ÿ Dual time cycle setting during 24hours, can be set different temperature fromday and night on the basis of the physical needs of animals and plants;
Ÿ Support reading with Centigrade or Fahrenheit unit;
Ÿ Maximum output load: 1200W(110V)/2200W(220V);
Ÿ Dual display window, be able to display measured temperature and settemperature at the same time;
Ÿ Temperature calibration;
Ÿ Over-temperature and sensor fault alarm;
Ÿ Build-in ultra-capacitor, after fully filled, it can supply timer chip working for more than 20 days without electricity.


2. Specification

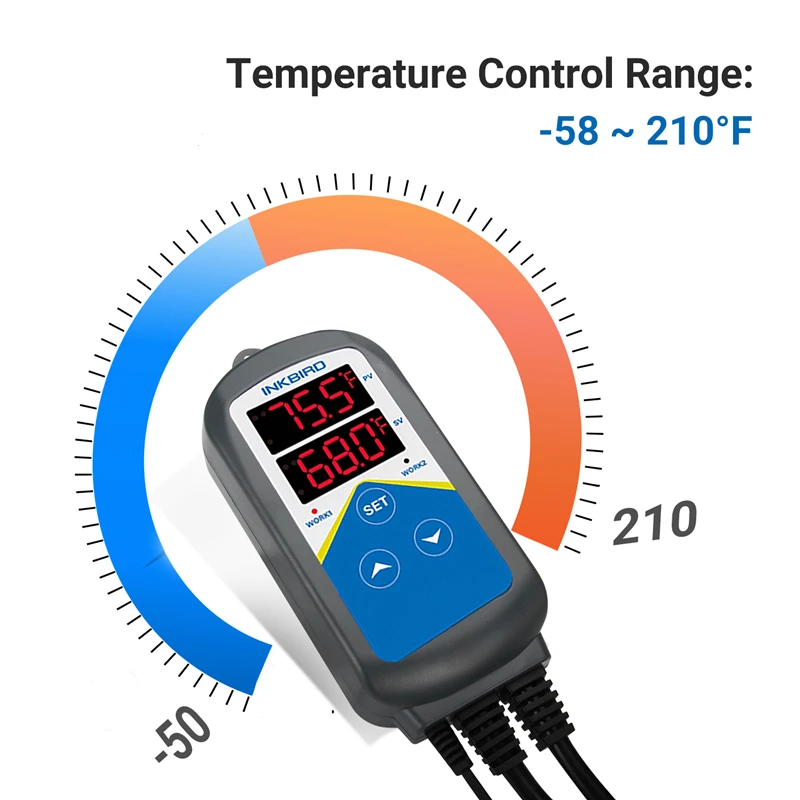

Temperature Control Range-50~99 °C / -58~210 ° F
Temperature Resolution0.1 ° C / 0.1° F
Temperature Accuracy±1°C (-50 ~ 70°C) / ±1°F (-58 ~ 160° F)
Temperature Control ModeOn/Off Control, Heating
Input Power100 ~240VAC, 50Hz/60Hz
Temperature Control OutputMax. 10A, 100V ~240V AC
Sensor TypeNTC sensor (Including)
Sensor Length2m / 6.56ft
Relay Contact CapacityHeating (10A, 100-240VAC)
Input Power Cable Length1.5m ( 5ft )
Output Power Cable Length30cm ( 1ft )

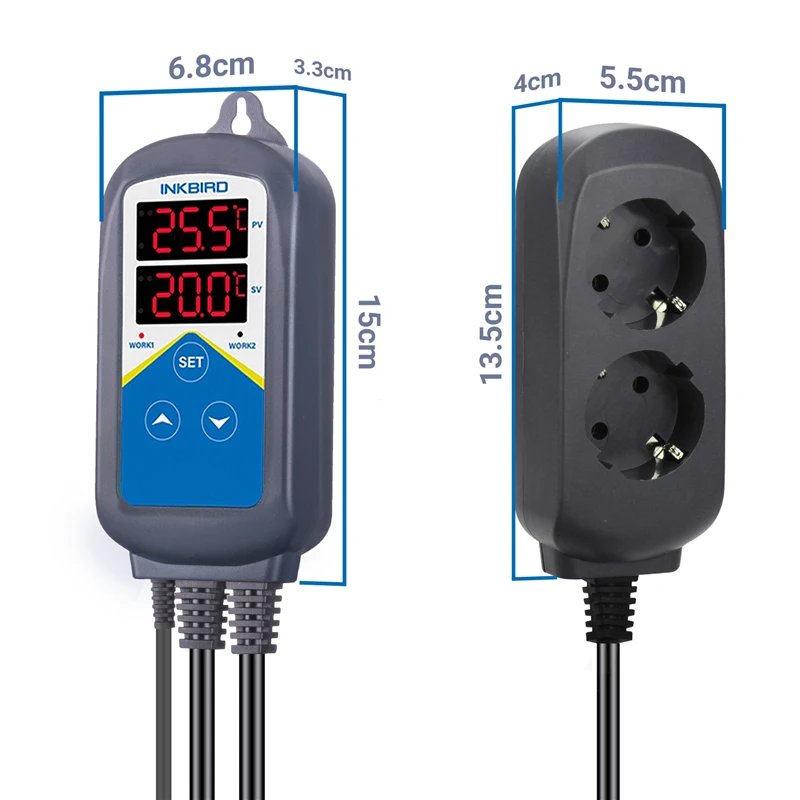

DimensionMain Body: 140x68x33mm (5.5x2.7x1.3 inch)
Socket (US Version): 85x42x24mm (3.3x1.7x1.0 inch)
Socket (EU Version): 135x54x40mm (5.3x2.1x1.6 inch)
Socket (UK Version): 140x51x27mm (5.5x2.0x1.0 inch)
Ambient Temperature-30~ 75 ° C /  -22~ 167 ° F
StorageTemperature -20~ 60 ° C /  -4~ 140 ° F
Humidity 20~85% (No Condensate )
Warranty1 Year
